Description

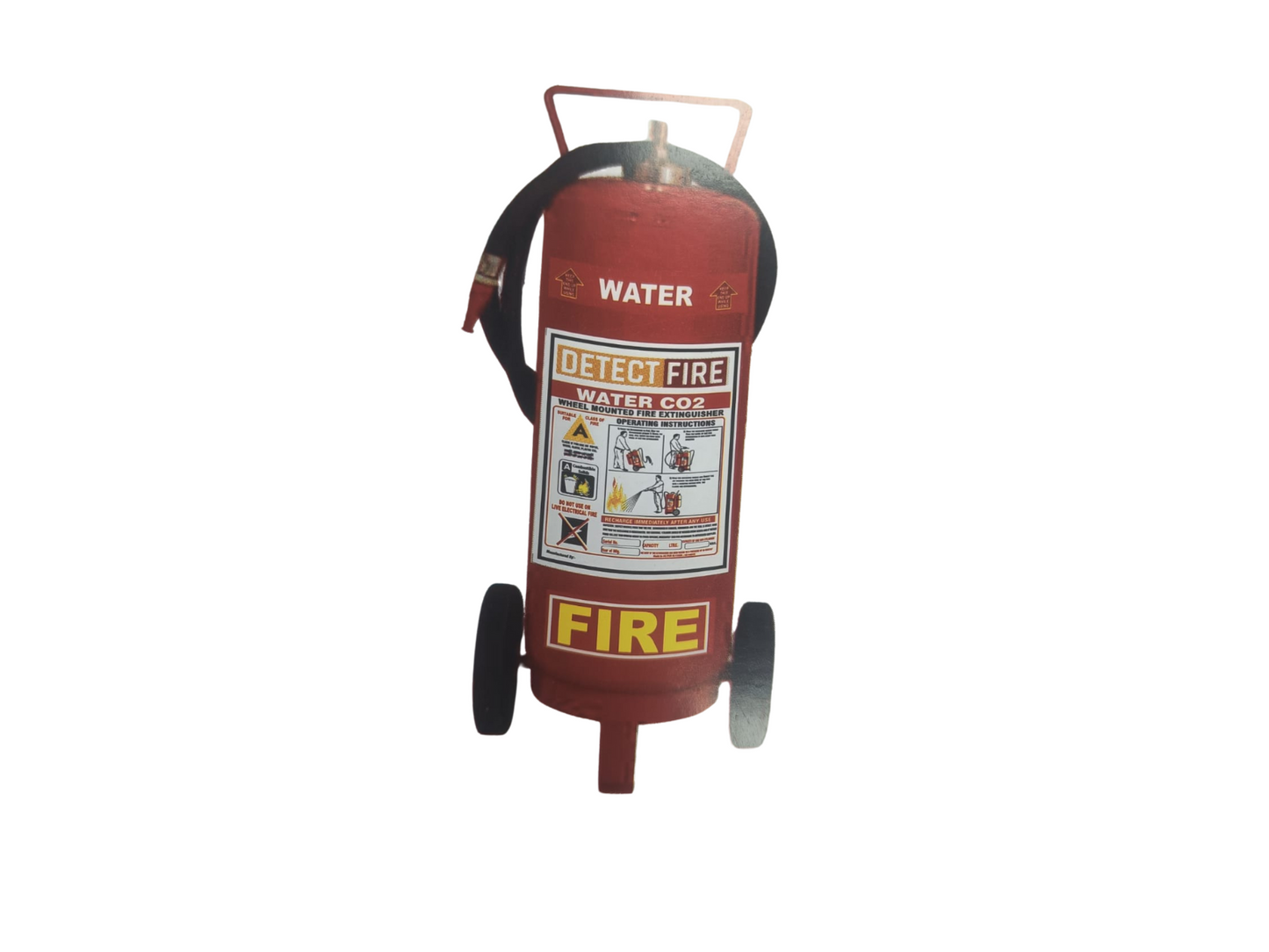

The Trolley-Mounted Water Type Automatic Fire Extinguisher is a highly efficient and versatile fire suppression tool, available in capacities of 25 liters, 45 liters, and 75 liters. It is designed to meet diverse fire safety needs with its robust features and reliable performance.
This extinguisher is coated with epoxy polyester powder to prevent corrosion, ensuring long-term durability. It uses DM soft water as the extinguishing media, providing effective and consistent performance. The unit operates under constant pressure, achieving a minimum effective discharge rate of 85% and delivering a jet length of more than 4-6 meters for optimal fire-fighting from a safe distance.
The extinguisher offers a prolonged discharge time of 20-30 seconds and is tested to withstand hydraulic pressure of 35 kgf/cm². It maintains an optimal charged pressure of 15 kgf/cm² and operates effectively within a temperature range of +5°C to +55°C. Automatic activation ensures immediate response upon contact with fire, enhancing safety and efficiency.
Reviews
Product Key Feature
Specification
| Specification | Capacity (Ltrs.) | Anti-Corrosive Inhibitor | Type of Extinguisher | Type of Extinguisher Media | Minimum Effective Discharge (%) | Minimum Jet Length (Mtrs) | Discharge Time (Sec) | Hydraulic Test Pressure (Kgf/cm²) | Operating Position | Charged Pressure (kgf/cm²) | Operating Temperature Range °C | Operating Method | Expellant | Confirming IS Code |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity | 25, 45 & 75 | Epoxy Polyester Powder Coating | Constant Pressure | DM Soft Water | 85 | More than 4-6 mtrs | More than 20 - 30 secs | 35 | Upright | 15 | (+) 5 to (+) 55 | Automatic contact of fire | Carbon Di-Oxide Gas | 16018 |
