Description

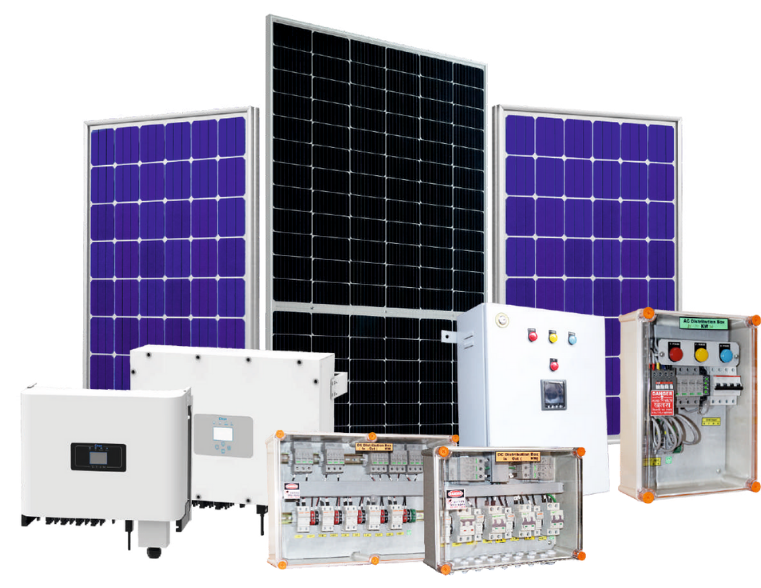

3kW solar panel kit is a complete, ready-to-install solution for harnessing the sun's energy. Designed for optimal performance and durability, this kit includes high-quality components to power your home or business efficiently.
Reviews
Product Key Feature
Specification
| Sno | Item | Item Specs | Qty | UoM |
|---|---|---|---|---|
| 1 | Panels | Premier 500 Wp | 6 | Pcs |
| 2 | Structure | 1 mtr front clearance | 100 | Kg |
| 3 | Inverter | Deye | 1 | Nos |
| 4 | ACDB and DCDB | MCB - Schnider / L&T or equivalent, Fuse - Mercen or equivalent, SPD - Phoenix Contact or equivalent | 1 | Nos |
| 5 | AC cable | 10 sqmm 2C, make polycab | 40 | mtr |
| 6 | 16 sqmm Earthing | Make- Polycab | 40 | mtr |
| 7 | 6 sqmm Earthing | Make- Polycab | 80 | mtr |
| 8 | 4 sqmm DC cable | Make- Polycab | 30 | mtr |
| 9 | Earthing rods | 2 mtr Copper bonded | 3 | pcs |
| 10 | Pit covers | 6'' | 3 | pcs |
| 11 | Chemical Bags | 25 kgs | 3 | pcs |
| 12 | LA | 1 mtr conventional type LA | 1 | pcs |
| 13 | Conduit | Flexible 25 MM UPVC | 60 | Mtr |
| 14 | ring type lugs | 6 mm | 8 | pcs |
| 15 | ring type lugs | 16 mm | 2 | pcs |
| 16 | Mc4 connectors | 4 | Pair | |
| 17 | M10 Fastner | 16 | pcs | |
| 18 | LA Insulators | 4 | pcs | |
| 19 | Fire extinguisher | 1 | pcs | |
| 20 | Danger Board | 1 | pcs | |
| 21 | Cable ties 100 mm | 1000 | pcs | |
| 22 | Cable ties 300 mm | 100 | pcs | |
| 23 | SS nut bolt set | for structure fixing | 25 | Pair |
| 24 | SS nut bolt set 10mm | for Module fixing | 25 | Pair |
| 25 | Gitti | 30 | Pcs | |
| 26 | Screw | 35X8 | 100 | Pcs |
| 27 | Saddle | 20 mm | 100 | Pcs |
| 28 | Saddle | 25 mm | 100 | Pcs |
| 29 | Electrical Tape | Red | 1 | Pcs |
| 30 | Electrical Tape | Black | 1 | Pcs |
| 31 | Electrical Tape | Green | 1 | Pcs |
| Warranty: 12 Year Product Warranty and 25 years Linear Output Warranty | ||||
| Inverter Warranty: 8 Years | ||||
