Description

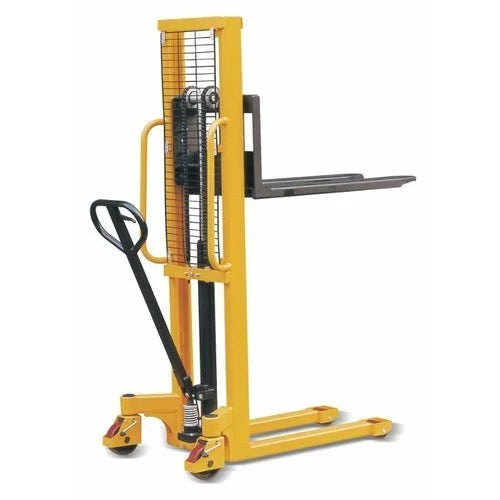

Apex manual stacker offers a complete range of solution in handling pallets. it is a reliable product with very high quality designed by our internal R&D department. The Fork Structure is single piece press-band, made by very thic steel to make the Fork strong for
lifting heavy loads.
The stacker lifts the weights effortless & quickly with a manual or pedal hydraulic device pump for fatigue operation. The foot brake performs the parking brake function with a
double lock.
The manual stacker is available in powder coated finish to protect rust and corrosion. The use friendly system of our manual stacker helps in Lifting, Stacking and Transferring material to the most confined congested areas.
Reviews
Product Key Feature
Specification
TECHNICAL SPECIFICATIONS | PARTICULARS | UNIT |
---|---|---|
Load Capacity | Tons | 2.0 |
Overall Height (A) | mm | 2135 |
Operational Height (B) | mm | 1070 |
Max. Fork Height (C) | mm | 1500 |
Min. Fork Height (D) | mm | 90 |
Fork Length (E) | mm | 900 |
Overall Length (F) | mm | 1600 |
Overall Width (G) | mm | 710 |
Max. Fork Width (H) | mm | 670 |
Fork Width (I) | mm | 152 |
Steering Wheel Size | mm | 0200 x 50 |
Size of Loading Wheel | mm | 080 x 70 |
Self Weight | Kg | 275 |
Wheel Type (Drive/Load) | PU/Nylon | |
Color | Orange |
